WoodGrille®

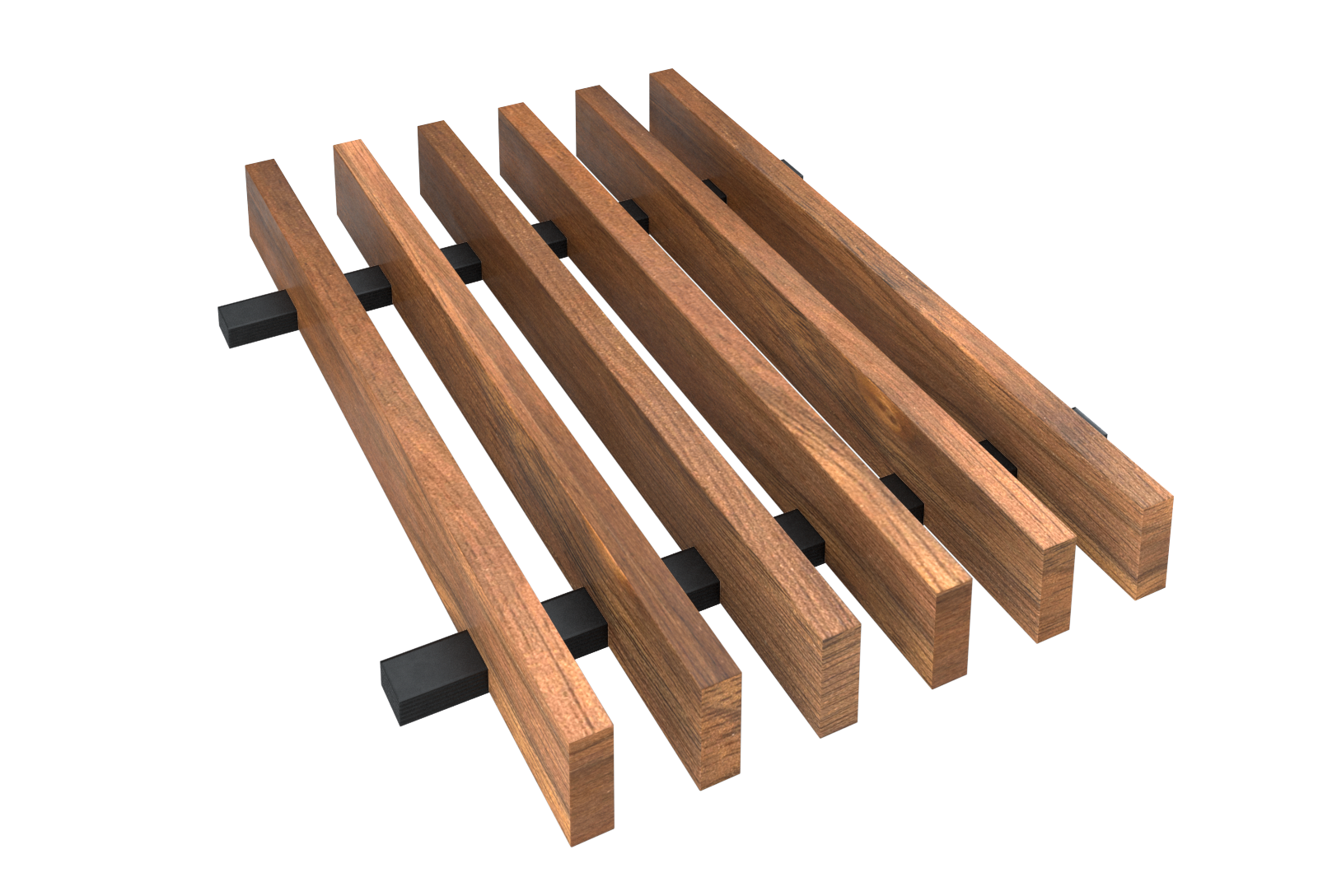

WoodGrille is a timeless linear wall and ceiling solution that blends the natural warmth of wood with exceptional acoustic performance. Built with a fire-rated MDF core and genuine or engineered wood veneers, it’s available with either an inlaid backer or aluminum dowel system. Both options feature a universal grid mounting clip for standard 15/16" ceiling grids, making installation fast and simple while delivering the signature grille aesthetic.

Application Icon

Applications

Our WoodTrends line of acoustical wood walls and ceilings products offer aesthetically pleasing finishes along with exceptional acoustic performance. Our WoodTrends products are offered a variety of perforation and veneer finishes.

Acoustic Icon

Acoustical Performance

Different acoustical materials including our black fleece backer or Sound Quality Black Theater Board can be used above or behind the grilles to enhance acoustical results. If you would like an acoustic material added to your quote, please let us know upon request.

Sizing Icon

Sizing

  • WoodGrille ships in 1' wide by 8' long panels with arrangements featuring two to eight blades per panel.
  • Typical Blade Widths: 5/8", 3/4", 1" or 1-1/4"
  • Typical Blade Heights: 1-3/4", 2", 3" or 4"
  • WoodGrille Weight: Grille assembly weights range from 1.0 to 6.0 lbs. per square foot, based on the number of blades, and blade height per assembly.
  • Custom sizes available.
Installation icon

Mounting

  • Backer with installation clips (standard)
  • Aluminum dowel system available upon request


Need it Fast

Need It Fast?
Check Out Our WoodGrille Quickship Program

WoodGrille products are in stock & ready to be shipped in 3 weeks from order placement. This limited offering gives you the opportunity to upgrade your space quickly & efficiently.

This limited offering features four popular veneer options and different blade configurations.

Quickship Options:

  • Grille size: 1'x 8'
  • Blade size: 2" or 3" high x 3/4" wide
  • Blade quantities from 2 to 8 per grille
  • Wood backer assembly
  • Class A fire rated MDF core
  • CARB2 (standard) California Phase 2 Compliant
  • Clear matte lacquer finish

Optional Features:

  • Grille installation clips
  • Acoustical fleece backer

Click Here for Full Details & to Request Pricing


Case Study: Austin Chinese Church

This project incorporates 3,420 square feet of WoodTrends wood veneered acoustical WoodGrille panels. The design features many angle cuts. Due to the fact that there were many panel groupings, at different heights, layout of the ceiling was critical.

Download Case Study
View WoodTrends Full Image Gallery
